Security Telescopic Parking Auto Rising Bollards With 219 mm Diameter for Parking Lot
Hydraulic road blocker/bollards series are widely used in highway tool station, checkpoints, prisons, airports, government agencies, embassies, military base-station, custom ports, banks, industrial and mining companies, ports, warehouse, parking and all requests to control vehicle in and out restrict traffic places. SECUSTAR 219 mm diameter Automatic rising bollards are made in top quality 304 stainless steel material , waterproof IP68.the bollards are able to work in heavy raining 24hours .Our bollards are nice apperance and intelligence control , It is easy to install system.
Product Main Specification:
| Control system: | electric hydraulic |
| Power: | 220V |
| System power: | 300W (single), multiple by the number of superimposed power |
| Weight capacity: | more than 100 tons of container trucks |
| Opening time: | 1.5~3s ( can be adjustable) |
| Closing time: | 1.5~3s(can be adjustable) |
| Communication: | RS485≤1200M |
| Blade height: | 600mm |
| Column diameter: | 219mm. |
| Operating temperature: | -35ºC-75ºC. |
| Storage temperature: | -40ºC-75ºC,waterproof, dust-proof, |

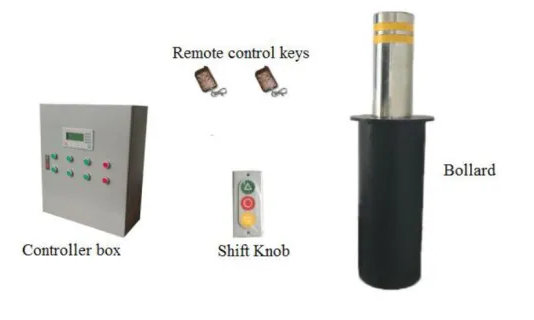

Consists of three parts: the lift Cylinder, hydraulic movement, electric control
1. Electronic Control System :
Control board, sub-control board, leakage switch, Automatic controller: including control box, remote control, manual button
2.The lift Cylinder:
The lifting column is mainly composed of lifting cylinder and base,the outer wall is black color, equipped with yellow reflective belt and Led
3. The Drive part:
Hydraulic movement mainly by the fuel tank, motor, pump and other components.
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your advance payment.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;
Product Tags:
|
|
Hydraulic Automatic Rising Bollards Stainless Steel Security Gate System Images
|
